Carton Erectors

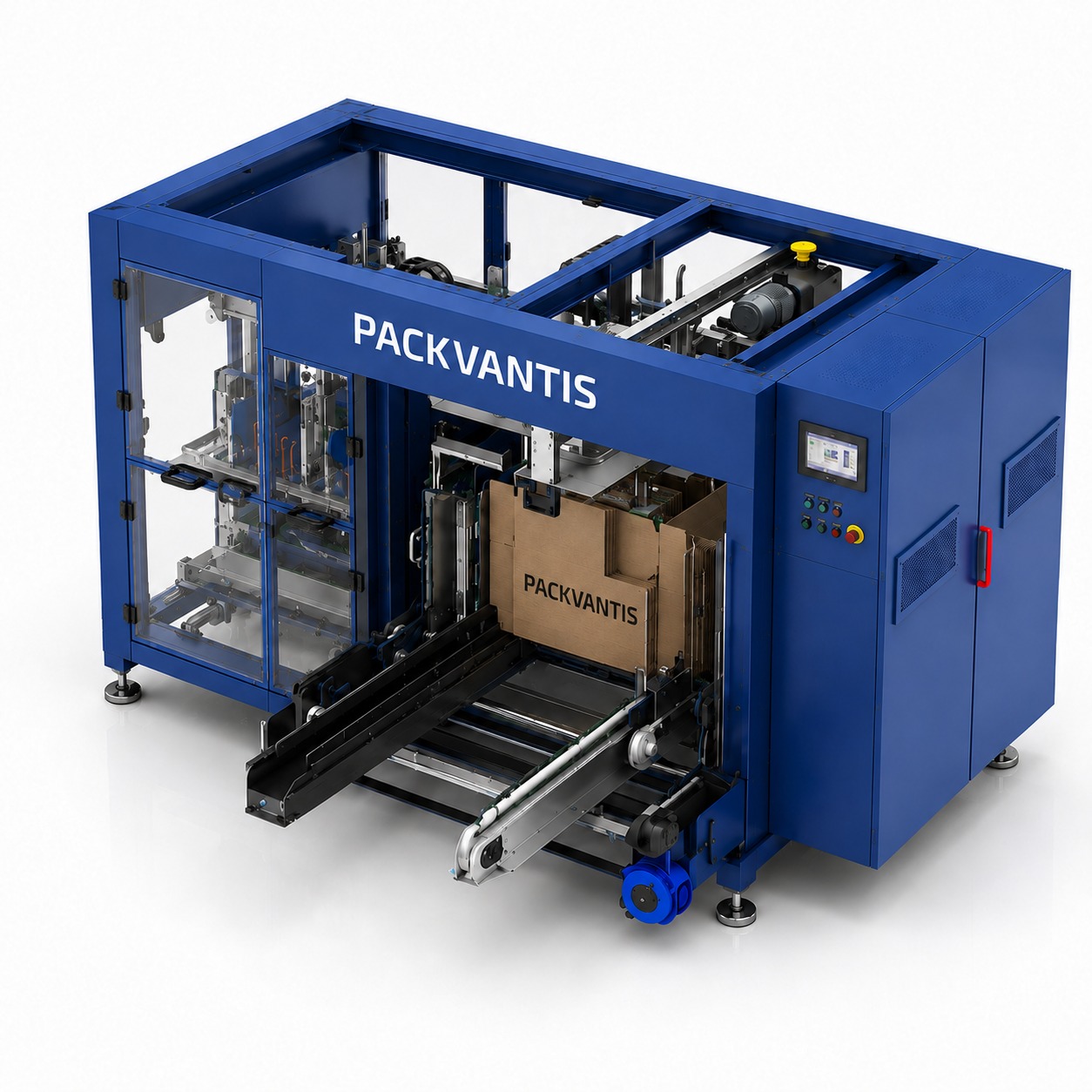

Automatic carton erecting machine
8-28

CPM Speed Range

Key Features

  • Automatic RSC case erection and bottom flap folding
  • Bottom sealing via tape or hot-melt glue
  • Speed range: 8 to 28 cases per minute (CPM)
  • Pneumatic & motorized magazine opening options
  • Simple changeover for multiple case sizes
  • Can be integrated with downstream case packers

Typical Specifications

Parameter Specification
Power Supply415V - 50Hz, 3Ph+N+E
Power Consumption1.5 - 3 kW
Air Pressure5 - 6 Bar
Speed Range8 - 28 CPM
Min. Case Size (LxWxH)250 x 200 x 140 mm
Max. Case Size (LxWxH)400 x 340 x 280 mm
Magazine Length (Max.)740 mm
Applications

Industries & Applications

Our machines can handle any flexible, rigid or semi-rigid primary packaging format:

1

Food & Beverage

Flour, Edible Oil, Coffee, Sauces, Ketchup, Mayonnaise, Dairy

2

Home Care

Liquid Detergents, Fabric Softeners, Cleaning Products

3

Personal Care

Soaps, Shampoos, Lotions, Cosmetics, Hygiene Products

4

Pharmaceuticals

Bottles, Cartons, Syrup Packs

5

Chemical & Industrial

Lubricants, Adhesives, Paints, Agricultural Products

6

Dairy

Bottles, Pouches, Tetra pack, Mono Cartons
